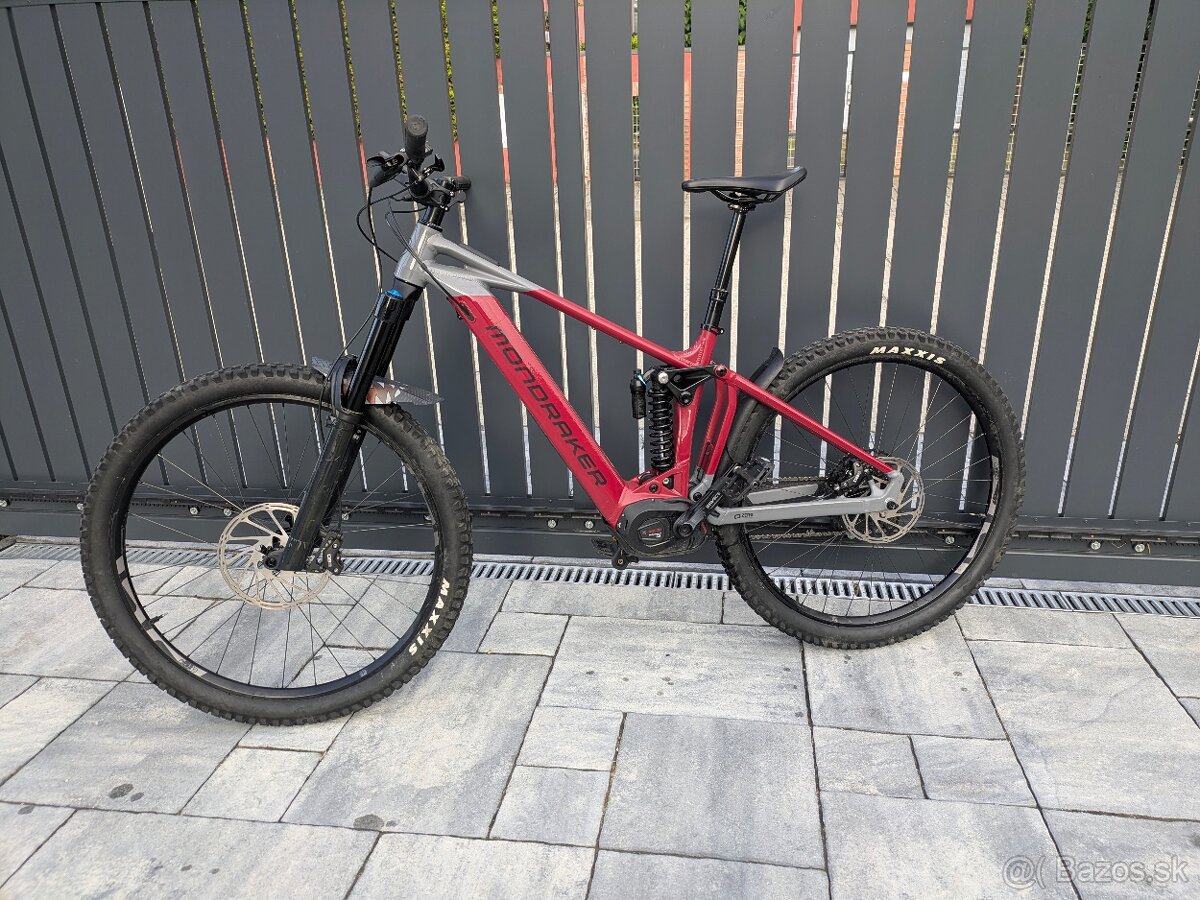

Modraker Lever R 2023 M

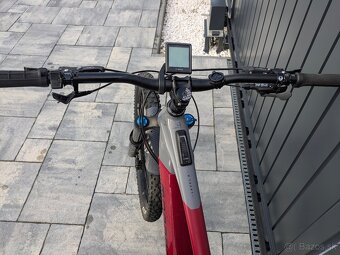

Predám zachovy Lever R, kupovaný v 11/2023. Aktuálne má najazdené 800km. Na bicykel boli od novoty aplikované ochranné fólie, takže rám je bez škrabancov. Vzadu sú nové platničky.
https://mondraker.com/is/en/season-history/detail/13-2023/2023-level-r
Mondraker
BIKE ARCHIVE
Spec's
Geometry
Spare parts
Season
Models
2023
LEVEL R - SUPER ENDURO
29 ZERO SUSPENSION SYSTEM FORWARD GEOMETRY OF MONDRAKER STEALTH ALLOY BOSCH SMART SYSTEM
Components

Technical specs
frame
Frame

Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

sizes
Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

rear shock

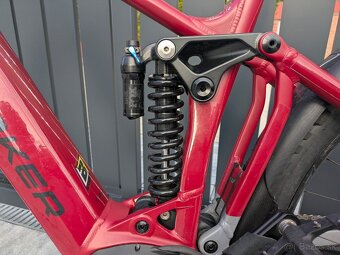

Rear shock

Fox DHX Performance 2P, 225x75mm. Settings: low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

shock settings
Shock settings

Medium compression, medium rebound. Spring rate: S/M size 300 lbs, L size 350 lbs, XL size 400 lbs

fork
Fork

Fox 38 29 Float GRIP EVOL Rhythm, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

headset
Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

stem
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

handlebar
Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

grips
Grips

Onoff Twin, 1lock-on, 135mm

seatpost
Seatpost

Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

saddle
Saddle

FIZIK Terra Aidon X5 145mm

front brake

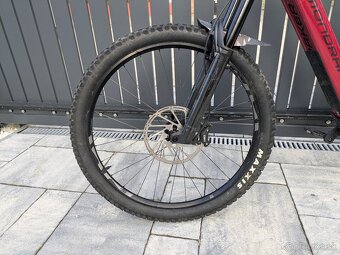

Front brake

Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

rear brake

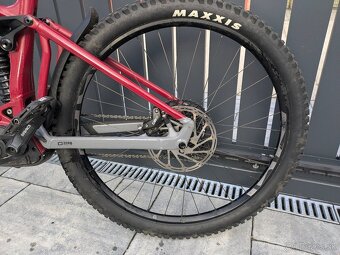

Rear brake

Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

brake lever
Brake lever

Sram DB8, tool reach adjust

rims
Rims

e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes

spokes
Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

front hub
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

rear hub
Rear hub

e*thirteen Bo
