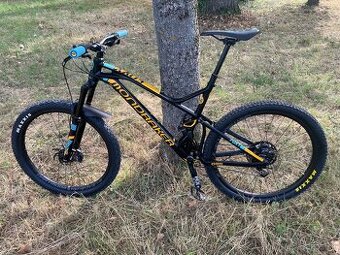

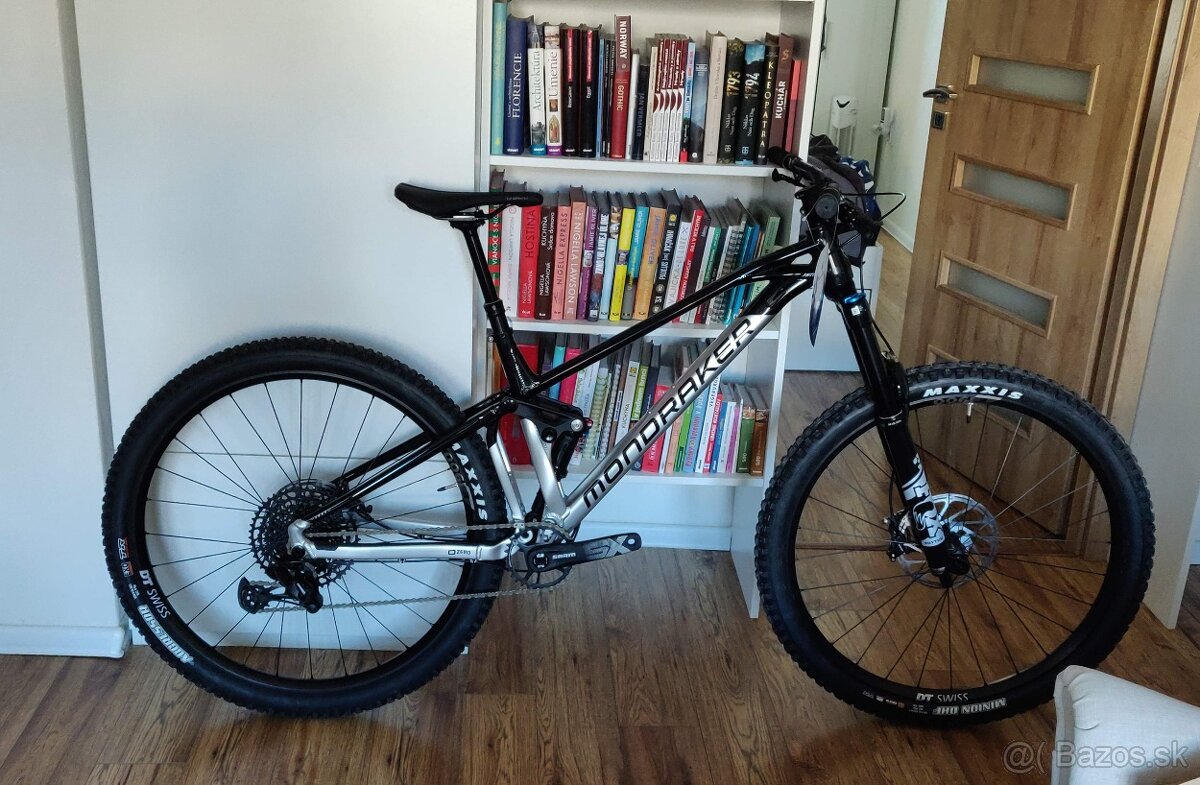

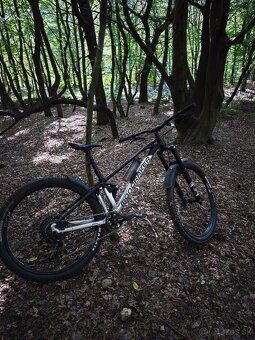

Mondraker Foxy 29 (2022) Racing horsky bicykel

- Rám

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

- Vidlica

Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

- Hlavové zloženie

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

- Prehadzovačka

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

- Brzdové páčky

Sram G2 R, tool-free reach adjust

- Stredové zloženie

Sram DUB BSA, sealed bearings, 73mm

- Radenie

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

- Riadidlá

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

- Kľuky

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

- Predstavec

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

- Sedlovka

Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm

- Sedlo

SDG BEL-AIR 3.0, LPU foam, steel rails

- Náboj Predný

DT 370, Boost 15x110mm, IS 6 bolts

- Náboj zadný

DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts,

- Reťaz

Sram SX Eagle, 12s, Powerlock

- Kazeta

Sram PG-1210, 11-50T, 12s

- Drôty

- DT Champion, straightpull

- Rafíky

DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

- Plášte

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

- Gripy

Onoff Diamond, 1lock-on, 135mm

- Prevodník

32T, steel, X-Sync 2

- Predná brzda

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

- Zadná brzda

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

- Pätka k prehadzovačke

Mondraker M068

- Tlmič

Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings

- Prevodník

32T, steel, X-Sync 2
