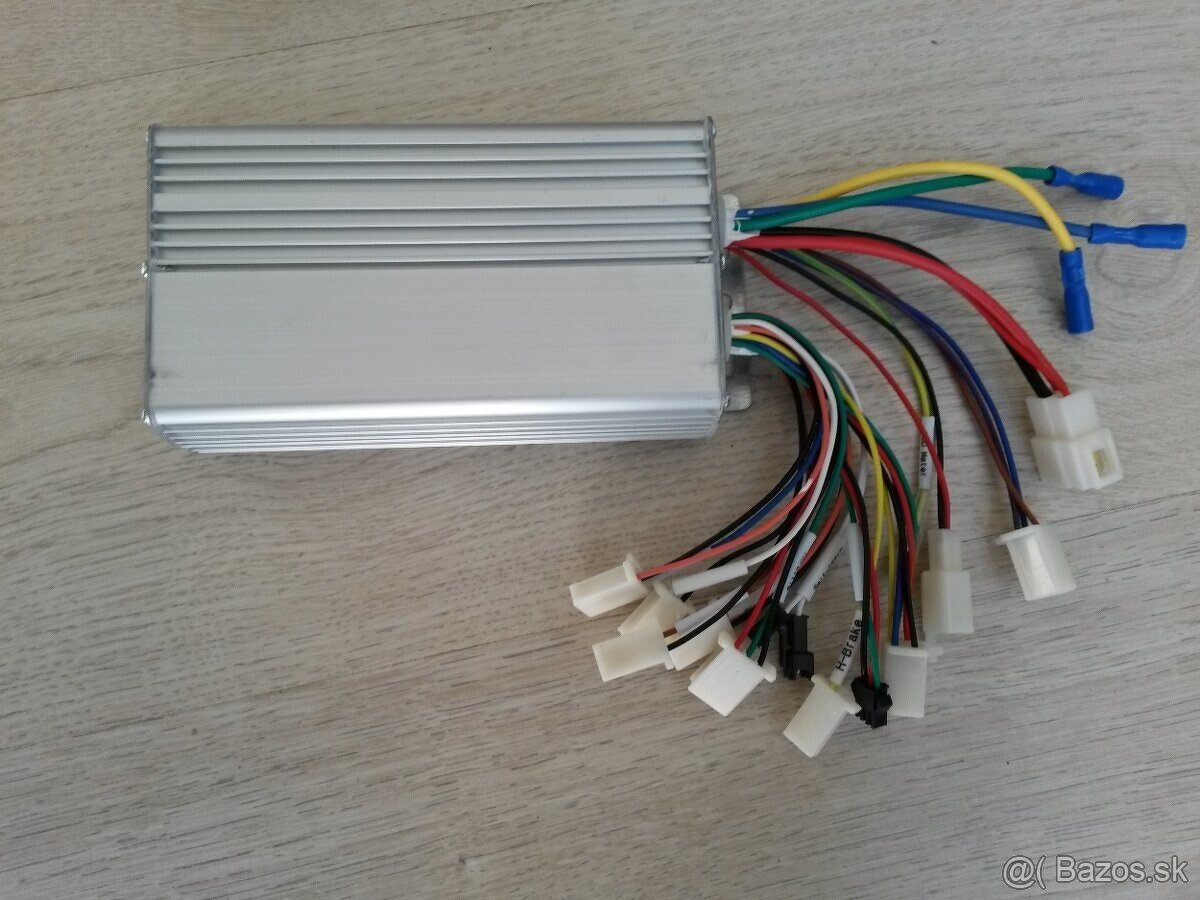

Kontroler pre elektrobicykel 36V-48V 1000W 30A max BLDC

Predam este nepouzity kontroler (riadiacu jednotku) pre BLDC 3-vyvodove motory. Vhodne pre elektrobicykle, elektroskutre. Da sa pouzit pre motor aj bez haloveho snimaca.

Napajacie napatie (bateria): 36V/48V
Low Voltage Cutoff: 31V/42V
Rated Power: 1000W
Limit Current: 31A

Obsahuje 12 Mosfet tranzistorov.

Funkcie:
mozu aj nemusia byt pouzite :
E-abs brake (high/low level)
Backward/Reverse
Cruising control
3 Speed (standard: 80%-100%-110%)
Speed Meter Display (one wire)
Self-learning
Alarm (Anti-theft)

Rozmer: 80x40x150mm

Osobne alebo na postou dobierku +4e
Tel: 0951159565

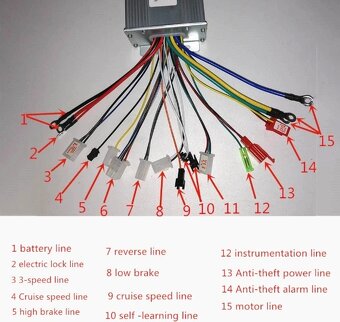

-connect the motor line (color to color）
-connect the battery line (red:+, black:-)
-connect the controller throttle line,
(electric lock wire to battery+ ）
-connect the hall line(if motor without hall line, don’t need connect)
-docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again
if wheel forward ,Separate the self-learning line.)

-other functions can be connected as needed.
